Stack

To add the Stack component to your app:

1
2
import { Stack } from '@forge/react';

Description

A stack manages the vertical layout of direct children using flexbox.

Props

NameTypeRequiredDescription
alignBlock"start" | "center" | "end" | "stretch"NoUsed to align children along the main axis.
alignInline"start" | "center" | "end" | "stretch"NoUsed to align children along the cross axis.
grow"hug" | "fill"NoUsed to set whether the container should grow to fill the available space.
space"space.0" | "space.025" | "space.050" | "space.075" | "space.100" | "space.150" | "space.200" | "space.250" | "space.300" | "space.400" | "space.500" | "space.600" | "space.800" | "space.1000"NoRepresents the space between each child
spread"space-between"NoUsed to distribute the children along the main axis.

Examples

The following example uses this ExampleBox component in their code blocks.

1
2
const ExampleBox=  () => {
  return (
    <Box
      xcss={{
        backgroundColor: 'color.background.discovery',
        borderRadius: 'border.radius',
        borderStyle: 'solid',
        borderWidth: 'border.width',
        borderColor: 'color.border.discovery',
        padding: 'space.200'
      }}
    />
  )
}

Basic

Use a stack component to efficiently lay-out a group of elements vertically.

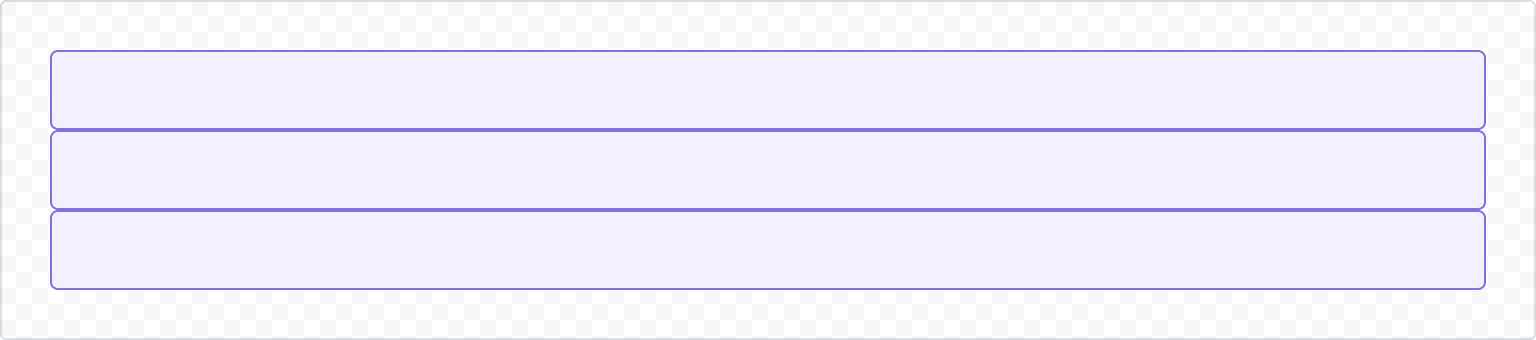

Example image of a rendered stack basic

1
2
const StackBasicExample = () => {
  return (
    <Stack>
      <ExampleBox />
      <ExampleBox />
      <ExampleBox />
    </Stack>
  );
}

Space

Control spacing between items with the space prop.

Example image of a rendered stack space

1
2
const StackSpaceExample = () => {
  return (
    <Stack alignInline="start" space="space.200">
      <ExampleBox />
      <ExampleBox />
      <ExampleBox />
    </Stack>
  );
}

Alignment

Block alignment

Control the alignment of items using the alignBlock props which control alignment in the vertical axis.

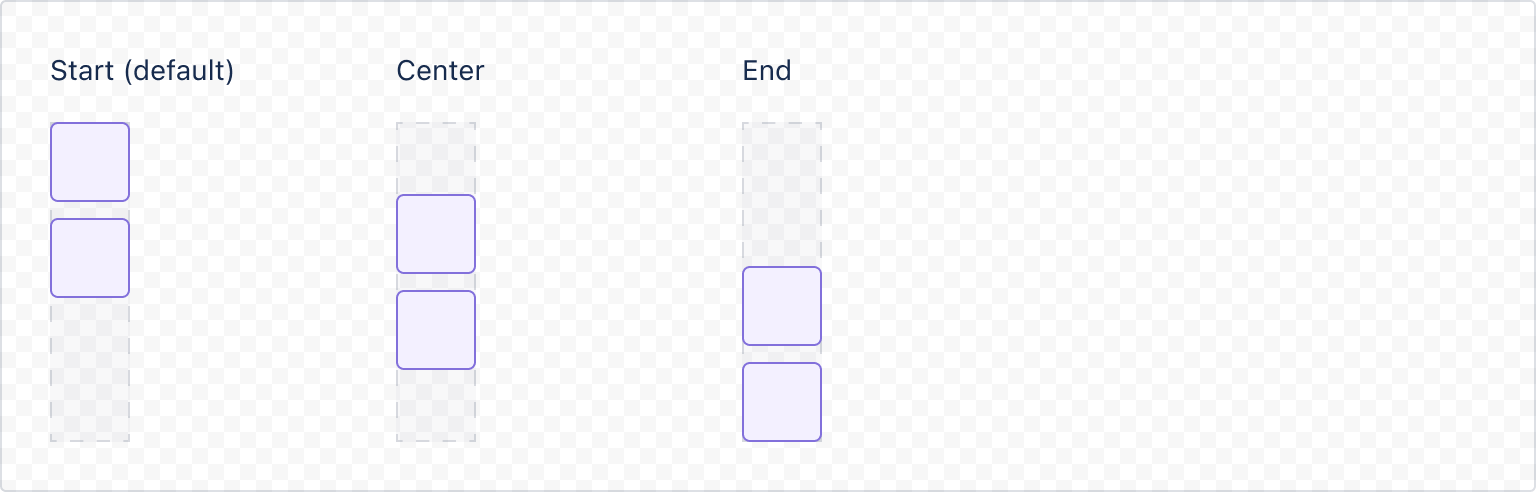

Example image of a rendered primary stack block alignment

1
2
const StackStartBlock = () => {
  return (
    <Inline space="space.200" alignBlock="stretch">
      <Stack space="space.050" alignBlock="start">
        <ExampleBox />
        <ExampleBox />
      </Stack>
      <Box
        xcss={{
          height: '200px',
        }}
      />
    </Inline>
  );
}

const StackCenterBlock = () => {
  return (
    <Inline space="space.200" alignBlock="stretch">
      <Stack space="space.050" alignBlock="center">
        <ExampleBox />
        <ExampleBox />
      </Stack>
      <Box
        xcss={{
          height: '200px',
        }}
      />
    </Inline>
  );
}

const StackEndBlock = () => {
  return (
    <Inline space="space.200" alignBlock="stretch">
      <Stack space="space.050" alignBlock="end">
        <ExampleBox />
        <ExampleBox />
      </Stack>
      <Box
        xcss={{
          height: '200px',
        }}
      />
    </Inline>
  );
}

Inline alignment

Control the alignment of items using the alignInline props which control alignment in the horizontal axis.

Example image of a rendered stack inline alignment

1
2
const LongBox=  () => {
  return (
    <Box
      xcss={{
        backgroundColor: 'color.background.discovery',
        borderRadius: 'border.radius',
        borderStyle: 'solid',
        borderWidth: 'border.width',
        borderColor: 'color.border.discovery',
        padding: 'space.200',
        height: '120px'
      }}
    />
)}

export const StackStartInline = () => {
  return (
    <Stack space="space.050" alignInline="start">
      <LongBox/>
      <ExampleBox />
      <ExampleBox />
    </Stack>
  );
}

export const StackCenterInline = () => {
  return (
    <Stack space="space.050" alignInline="center">
      <LongBox/>
      <ExampleBox />
      <ExampleBox />
    </Stack>
  );
}

export const StackEndInline = () => {
  return (
    <Stack space="space.050" alignInline="end">
      <LongBox/>
      <ExampleBox />
      <ExampleBox />
    </Stack>
  );
}

Spread

Use the spread prop to set elements to stay together, spaced at the given value (default behavior) or spread equally in the space available.

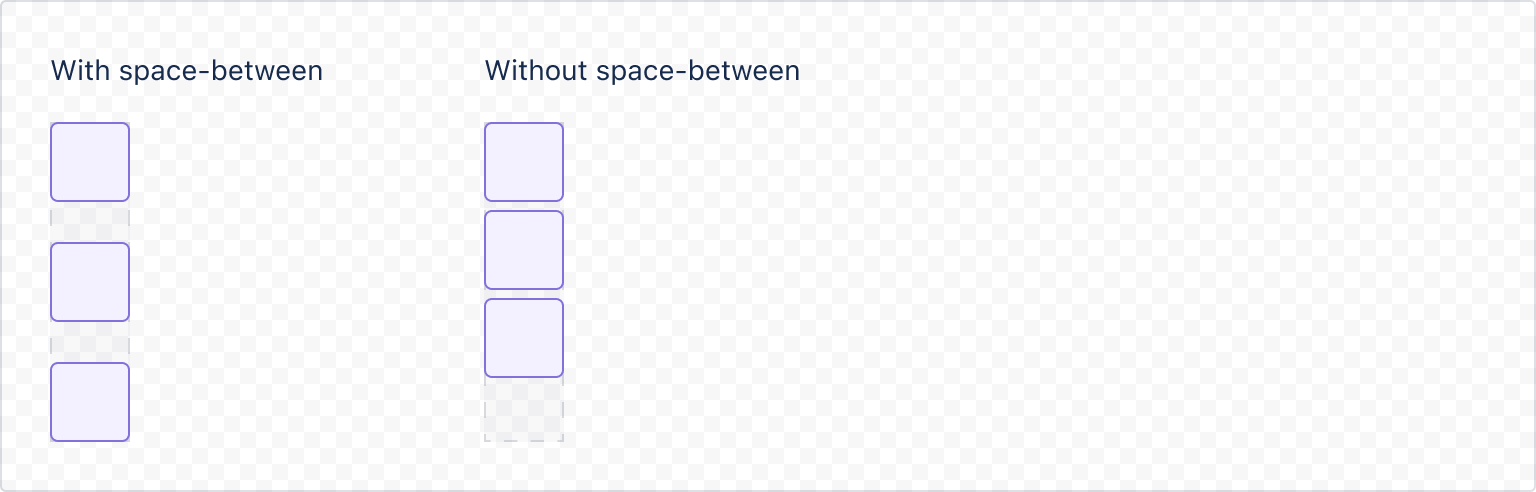

Example image of a rendered added spread

1
2
const StackSpreadExample = () => {
  return (
    <Inline alignBlock="stretch">
      <Stack spread="space-between">
        <ExampleBox />
        <ExampleBox />
        <ExampleBox />
      </Stack>
      <Box xcss={{height: '140px'}} />
    </Inline>
  );
}

Width control

By default a Stack will have its width influenced by the context where it appears. To control the width use the grow prop with the values:

  • hug (default) to use space only as required by its children, or
  • fill to take all space provided by the parent element.

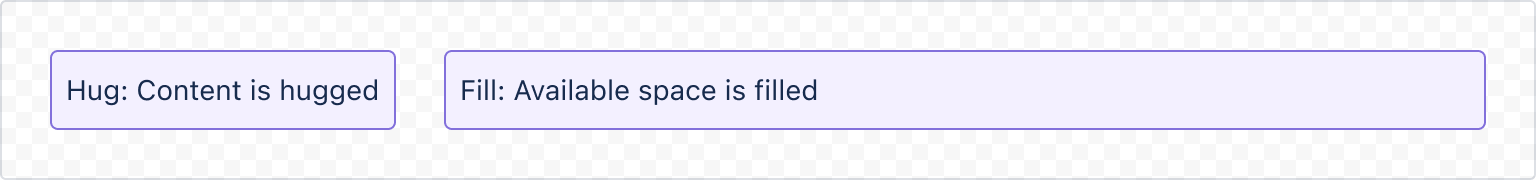

Example image of a rendered stack width control

1
2
const StackWidthControlExample = () => {
  return (
    <Inline space="space.200">
      <Stack grow="hug">
        <ExampleBox>This content is hugged</ExampleBox>
      </Stack>
      <Stack grow="fill">
        <ExampleBox>Available space is filled</ExampleBox>
      </Stack>
    </Inline>
  );
};
